Library Offers a Gateway for the Community

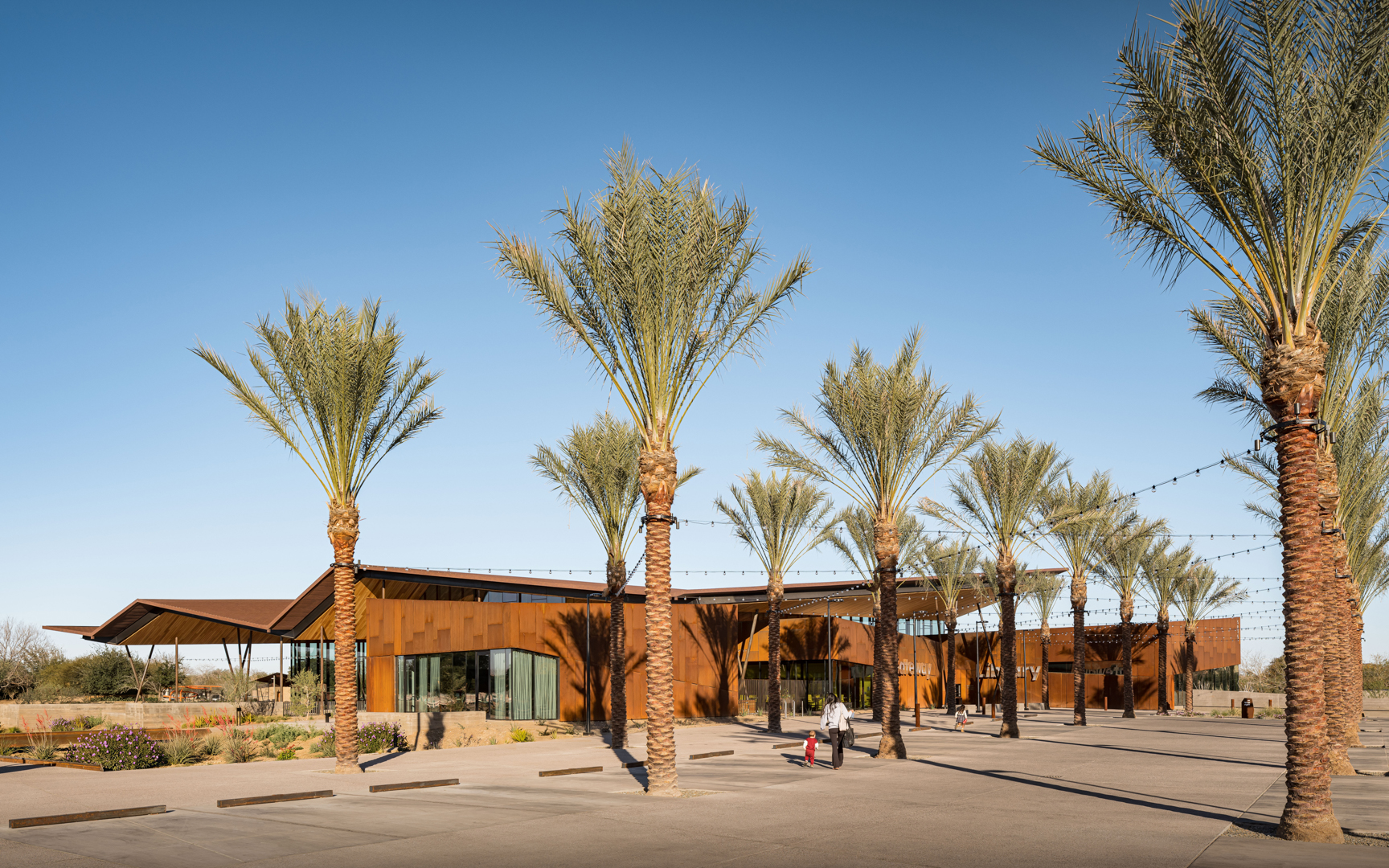

Set at the edge of a public park in a growing community, Gateway Public Library resists the conventional image of the civic building as object. Instead, it operates as an extension of the landscape, more pavilion than building, defined less by enclosure than by shade, structure, and occupation. Its organizing idea is direct: a single open hall conceived as a contemporary market, where knowledge and social life unfold within a shared, legible interior.

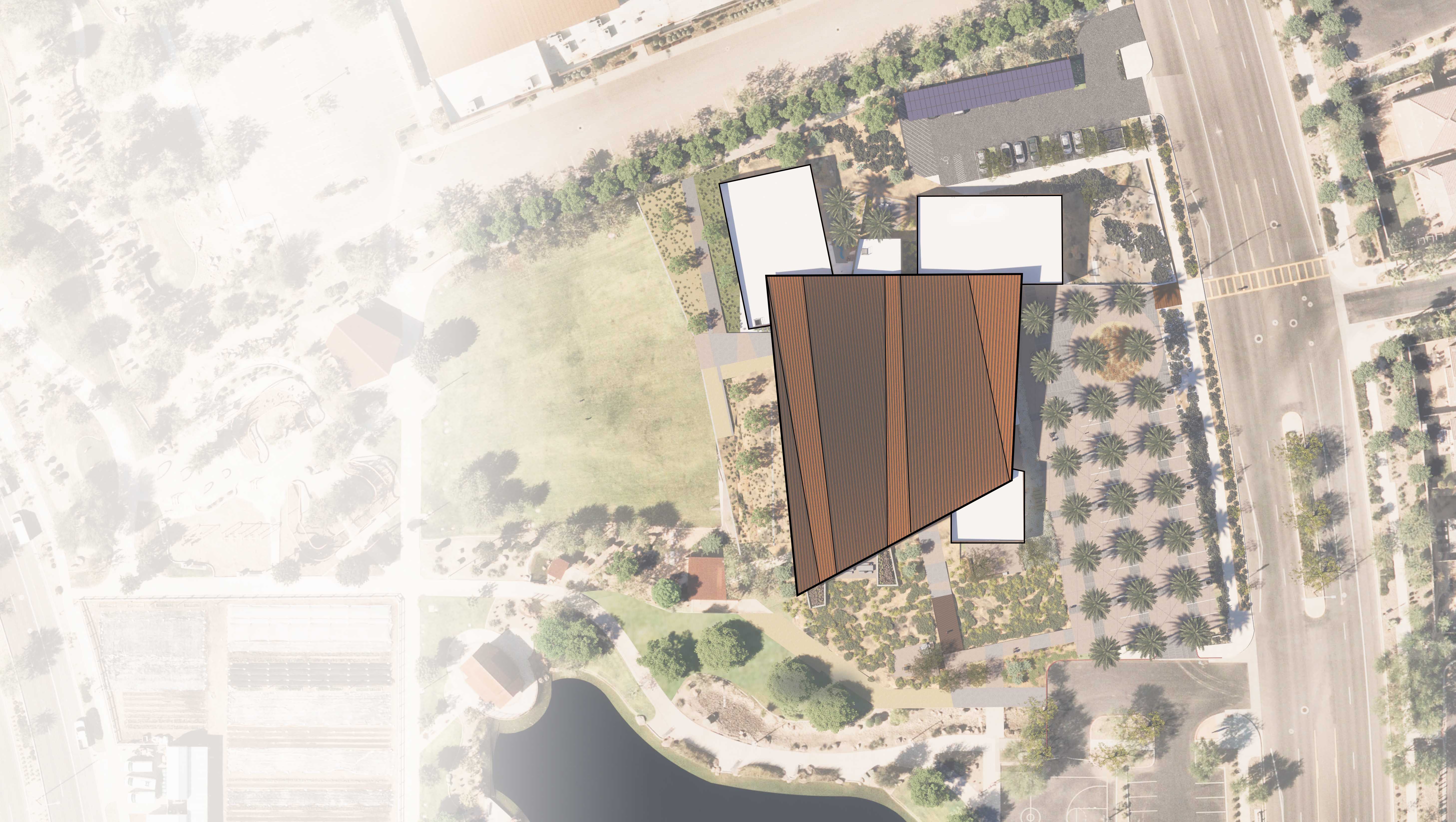

site plan

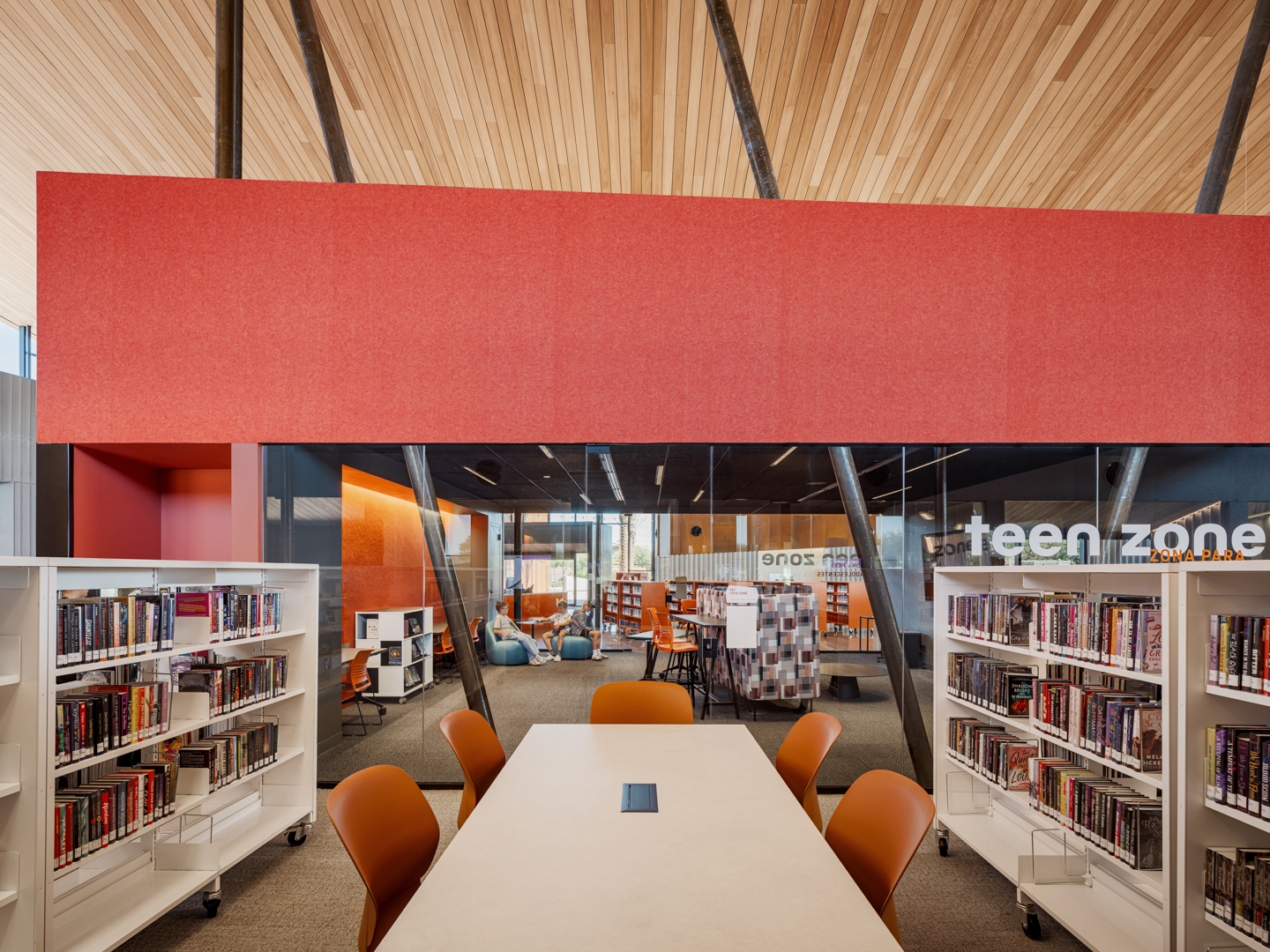

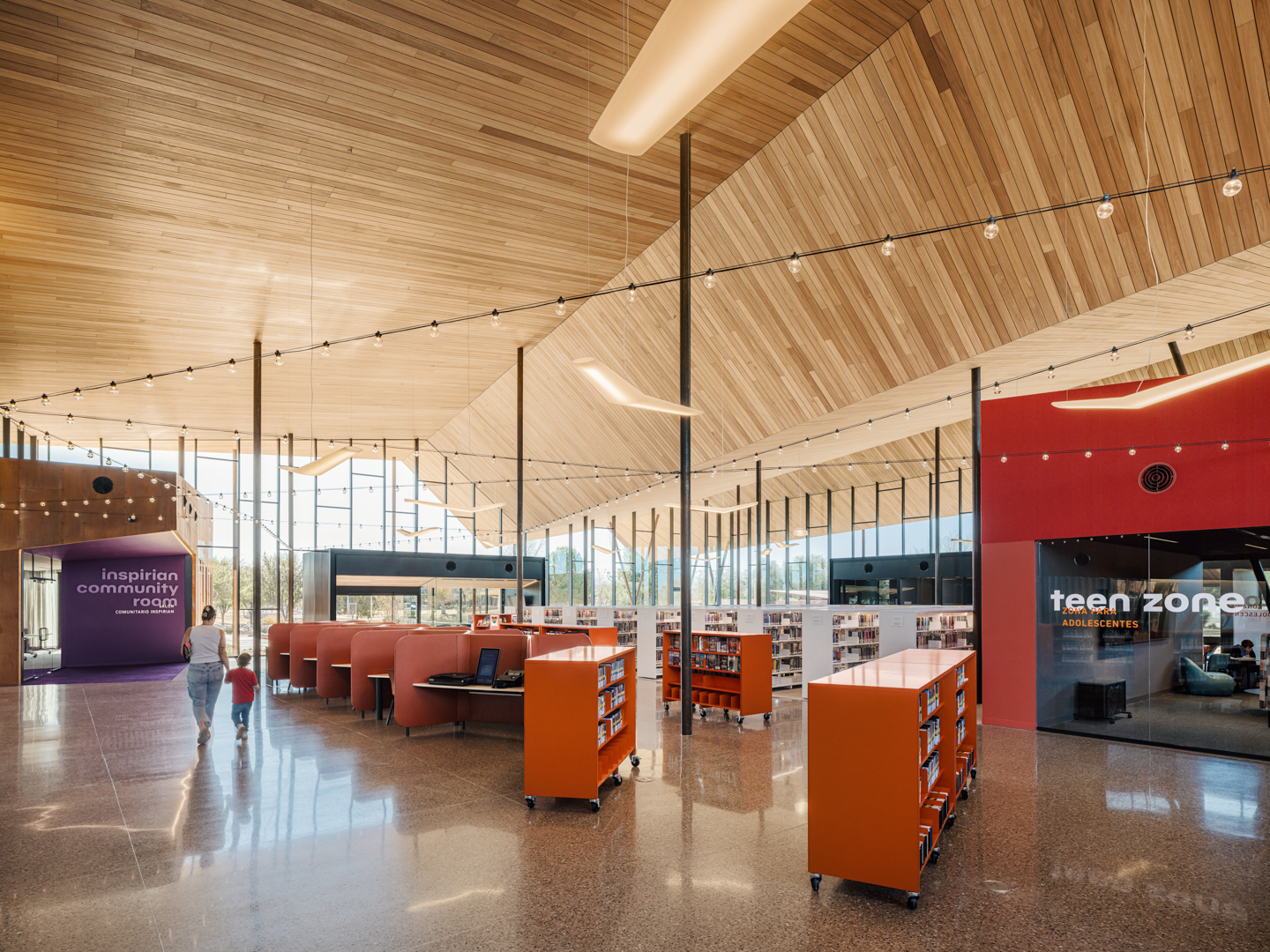

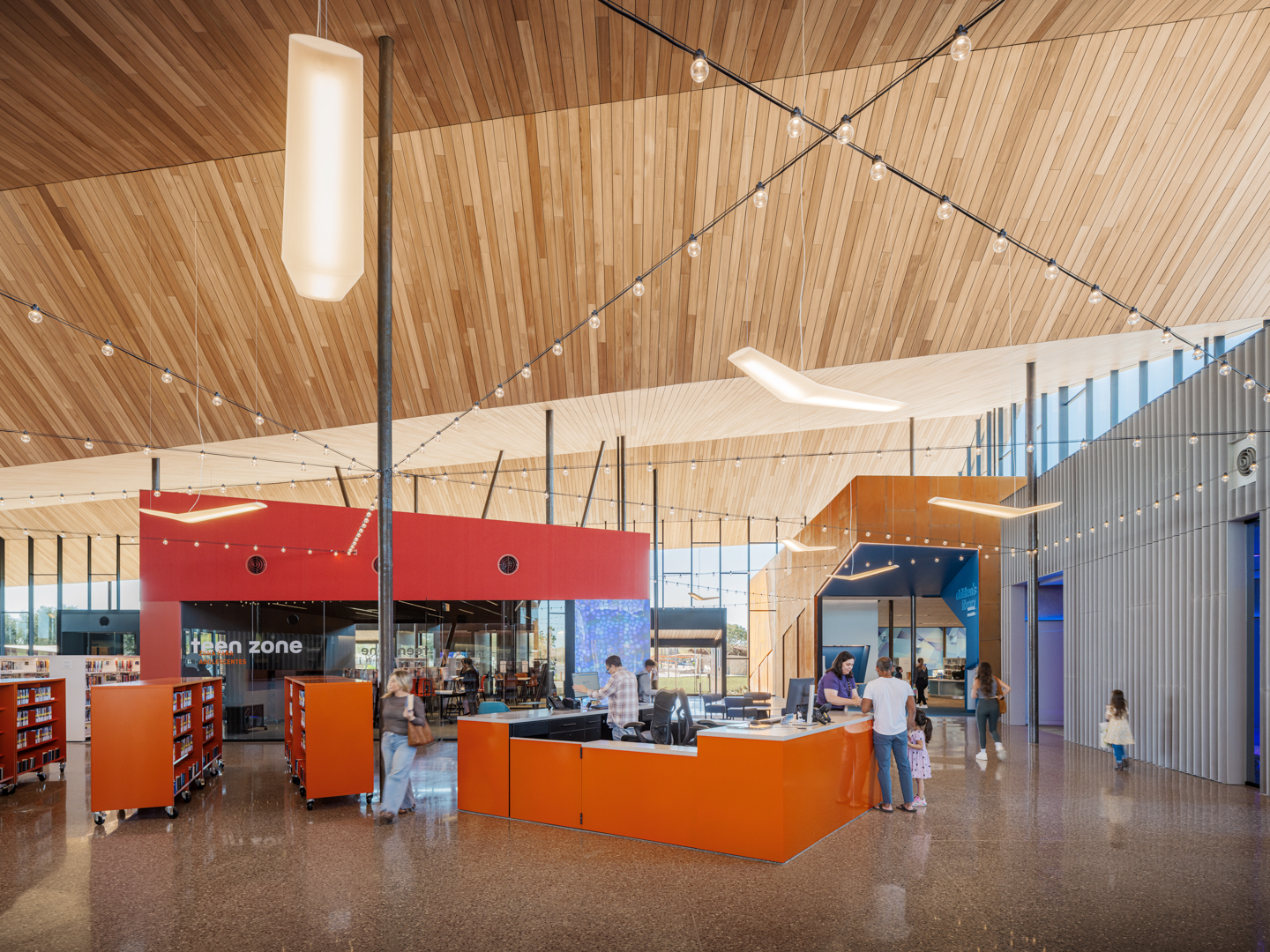

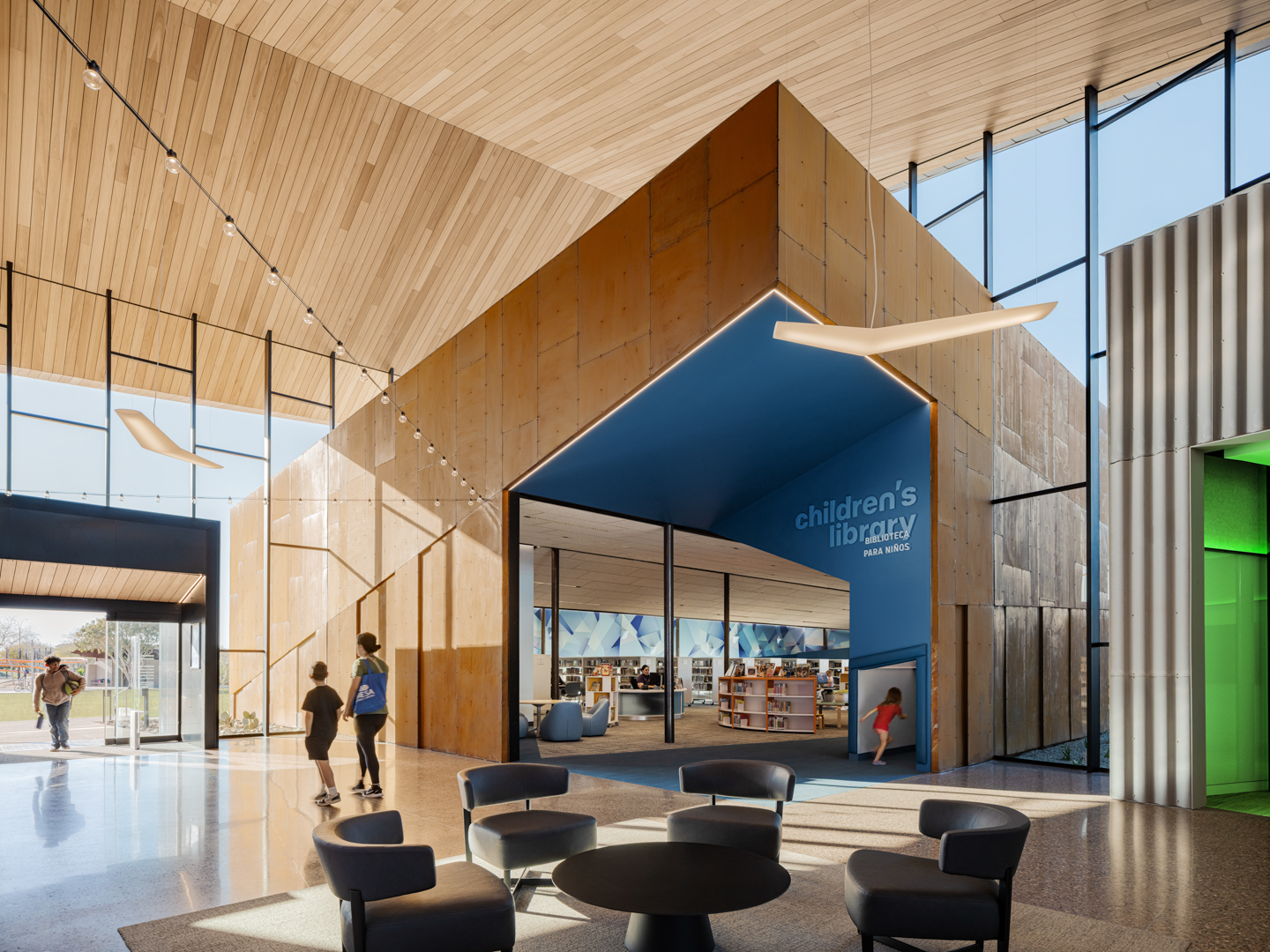

The plan is structured as one continuous volume. Program is organized as a series of discrete volumes set within this hall, carefully placed to establish hierarchy, orientation, and use. Gathering spaces are treated as freestanding elements, or “market stands,” distributed across the interior. A teen area occupies the center as a more defined mass, while enclosed program rooms and support spaces are positioned along the perimeter. The central space emerges as a void defined by the spacing and orientation of these volumes, preserving continuity while allowing the interior to be read at a glance.

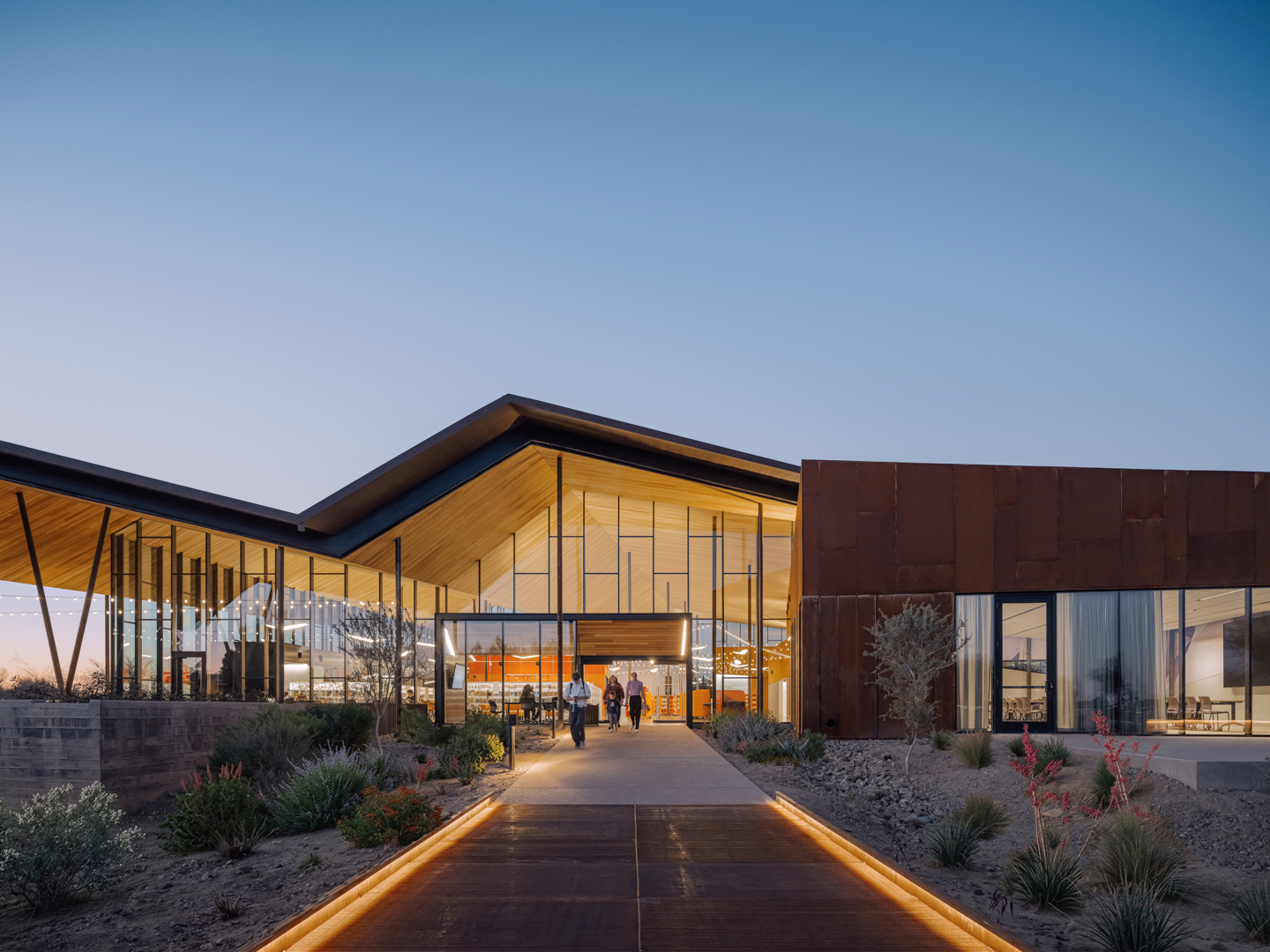

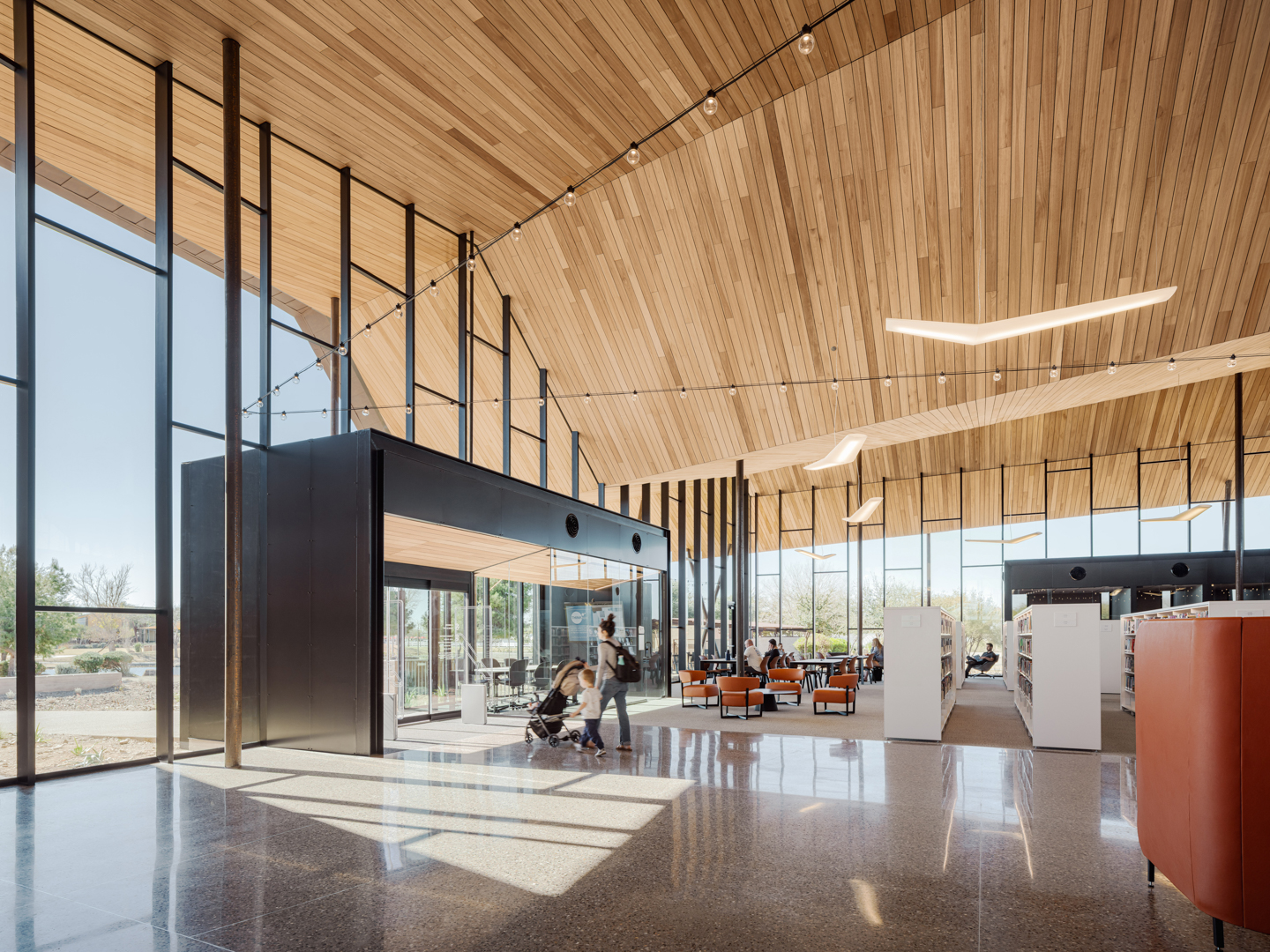

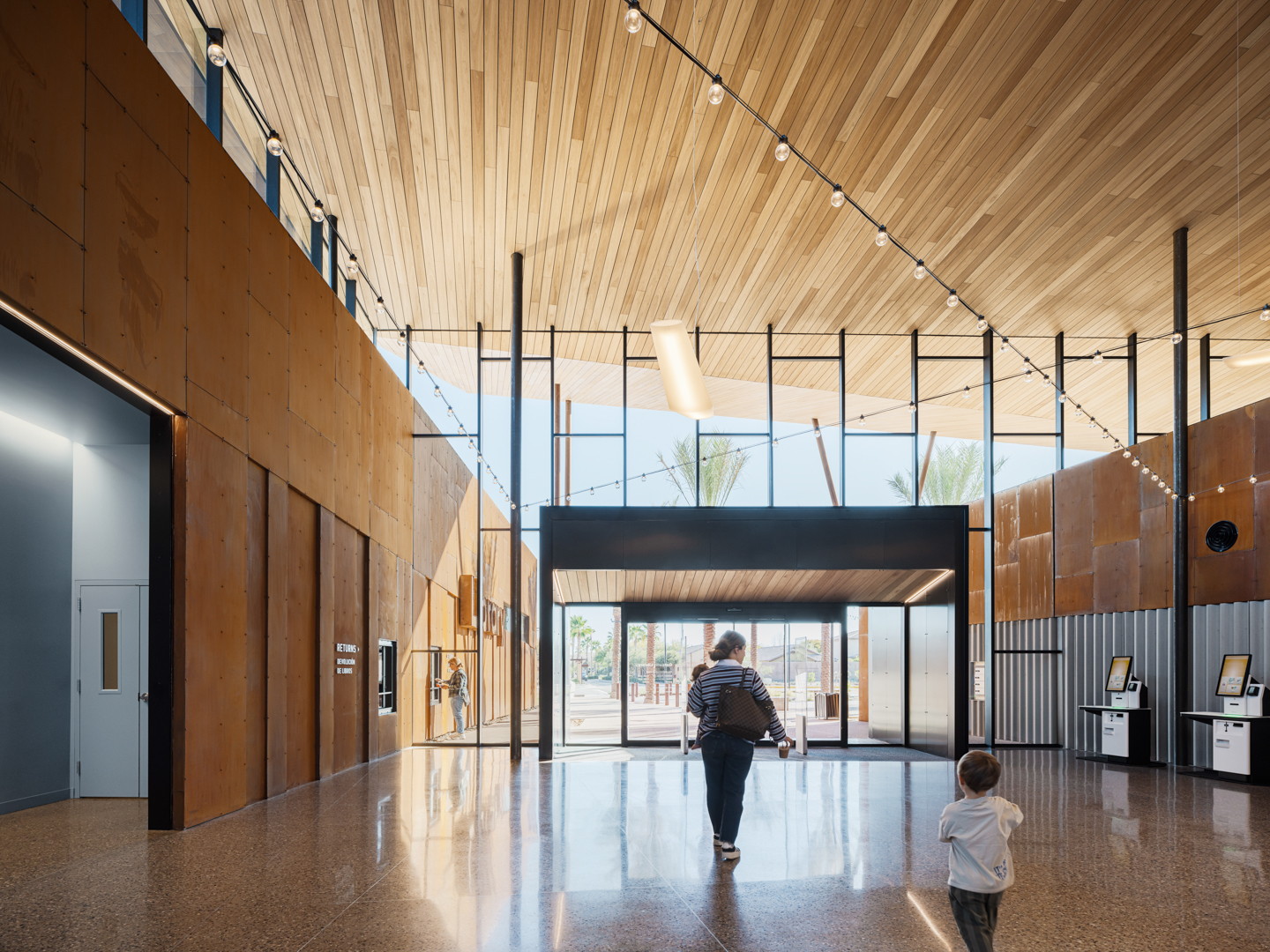

Access reinforces this reading. Entries from multiple sides align with park paths and an adjacent school, allowing the building to be approached and entered without a singular front. Movement through the library is flexible and multi-directional, supported by clear visual alignments between volumes. The threshold between exterior and interior is deliberately softened; one moves under the same continuous roof plane, from open park into shaded enclosure, without a fixed point of transition.

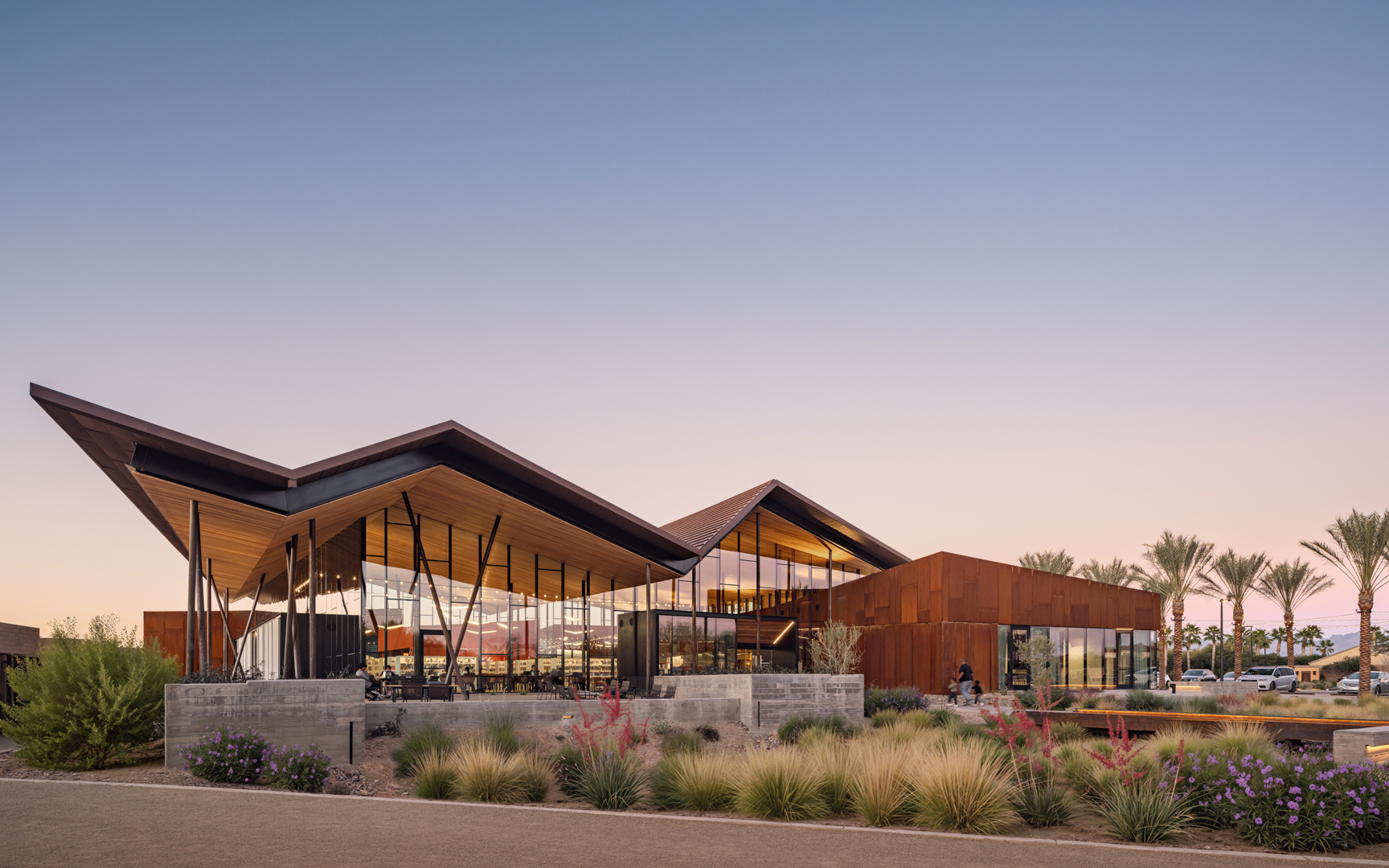

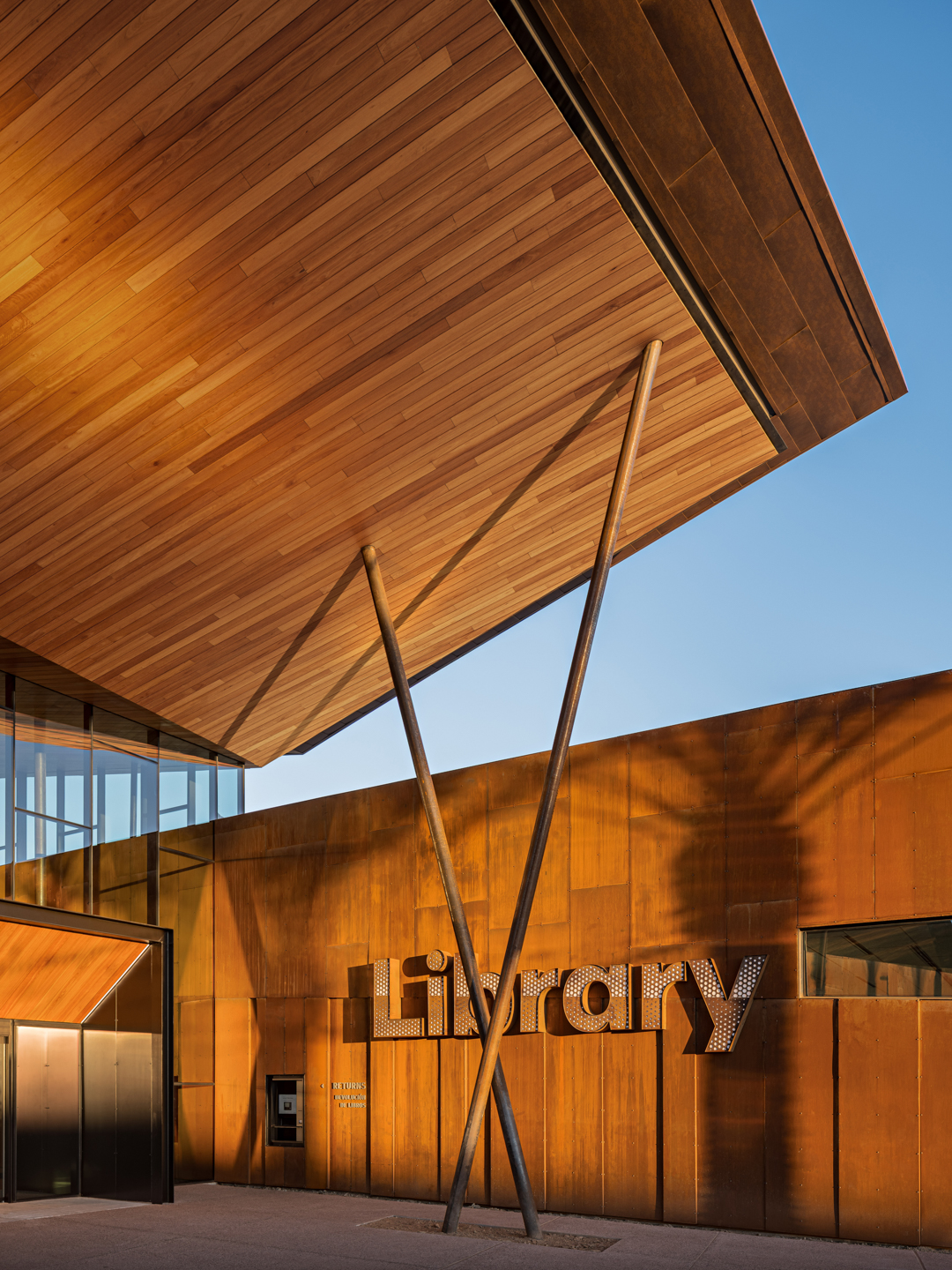

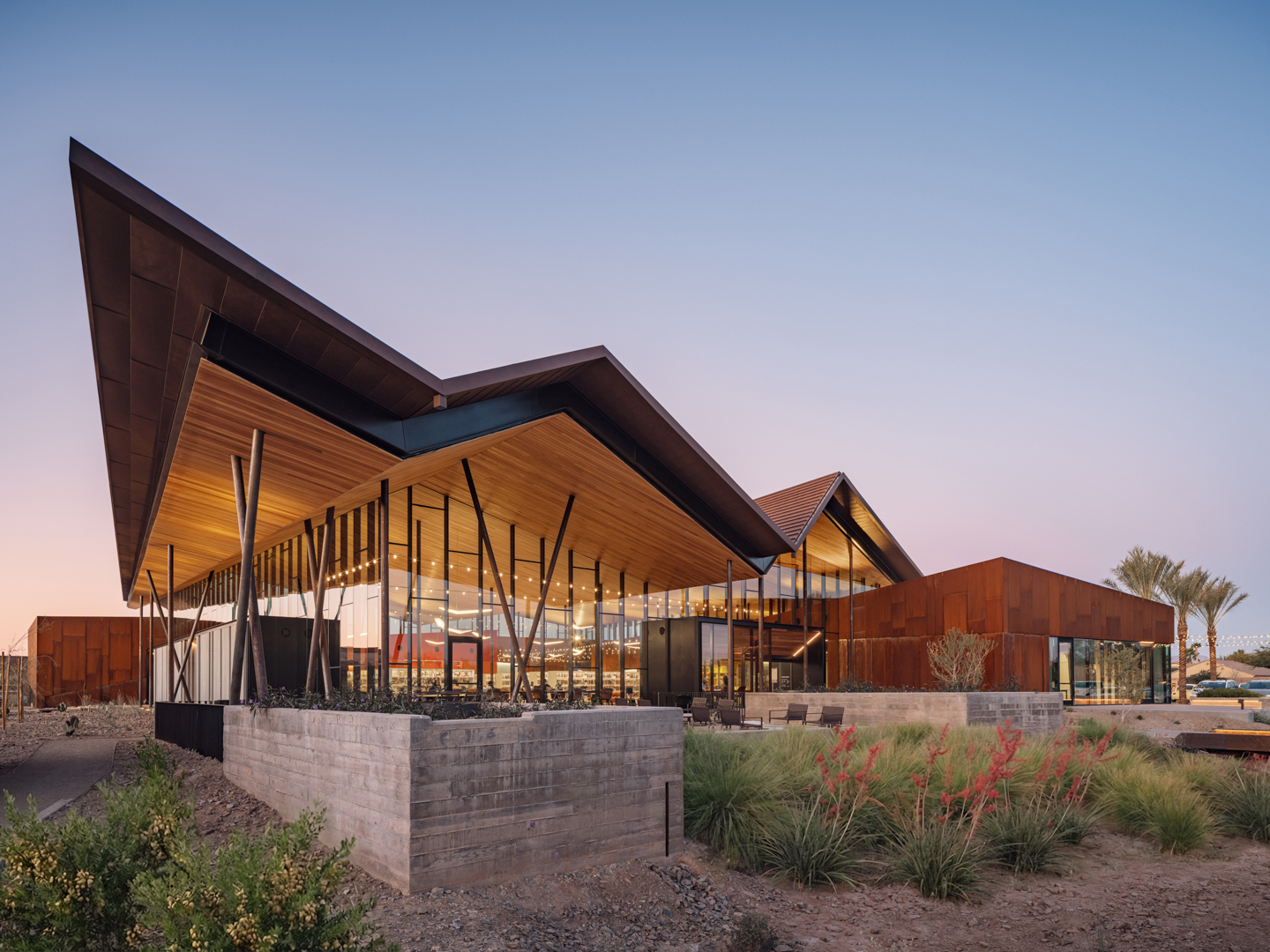

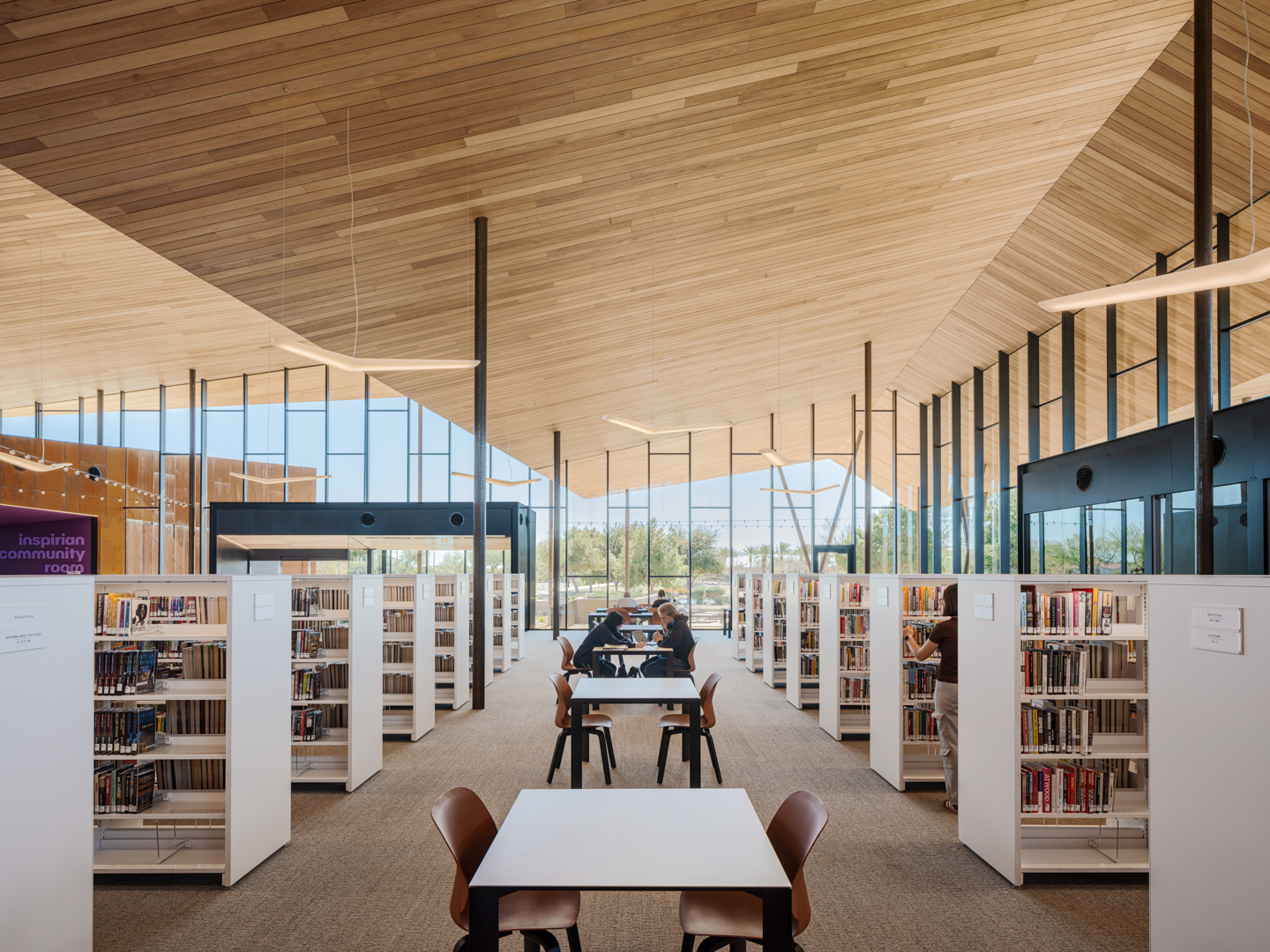

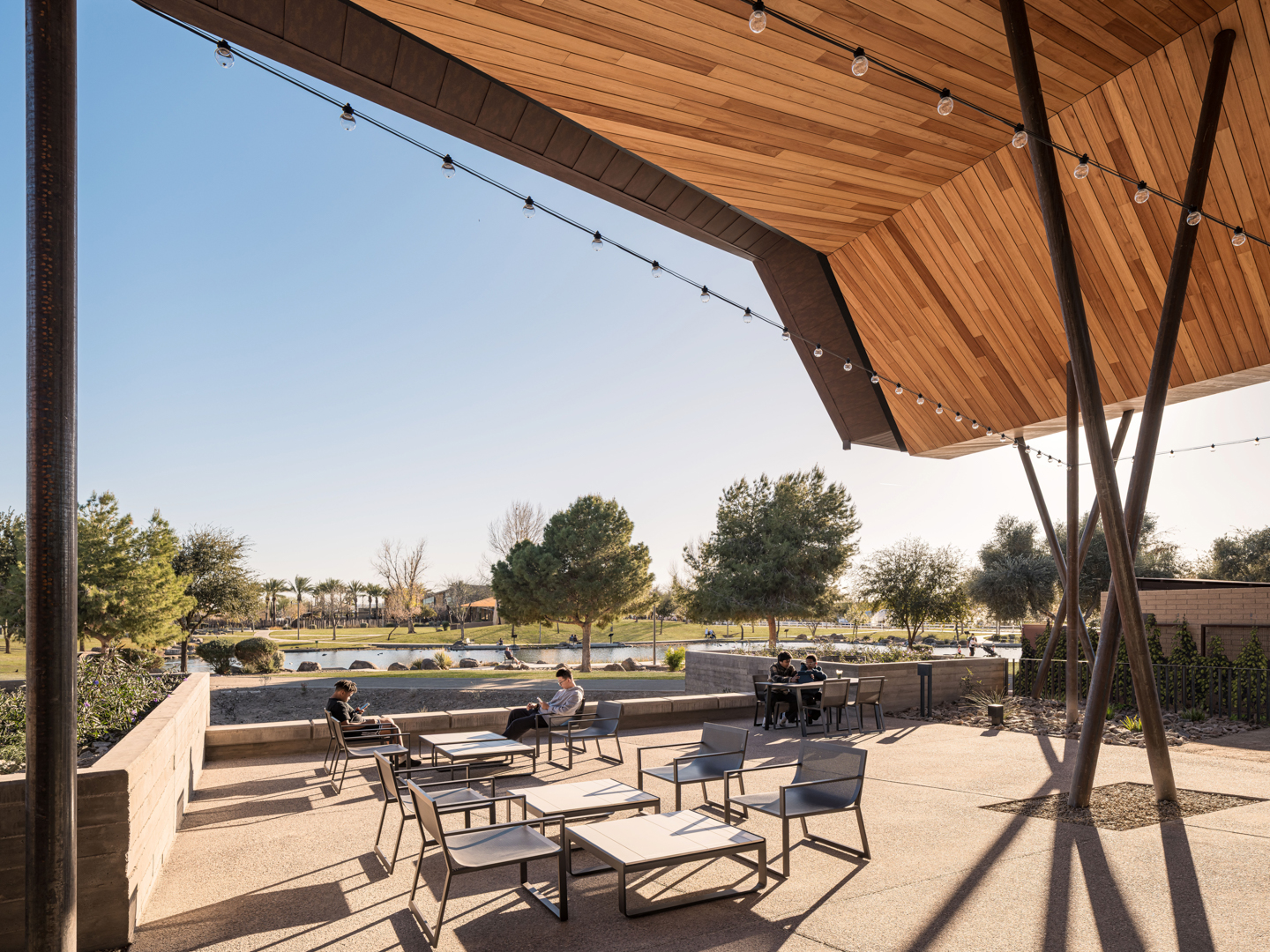

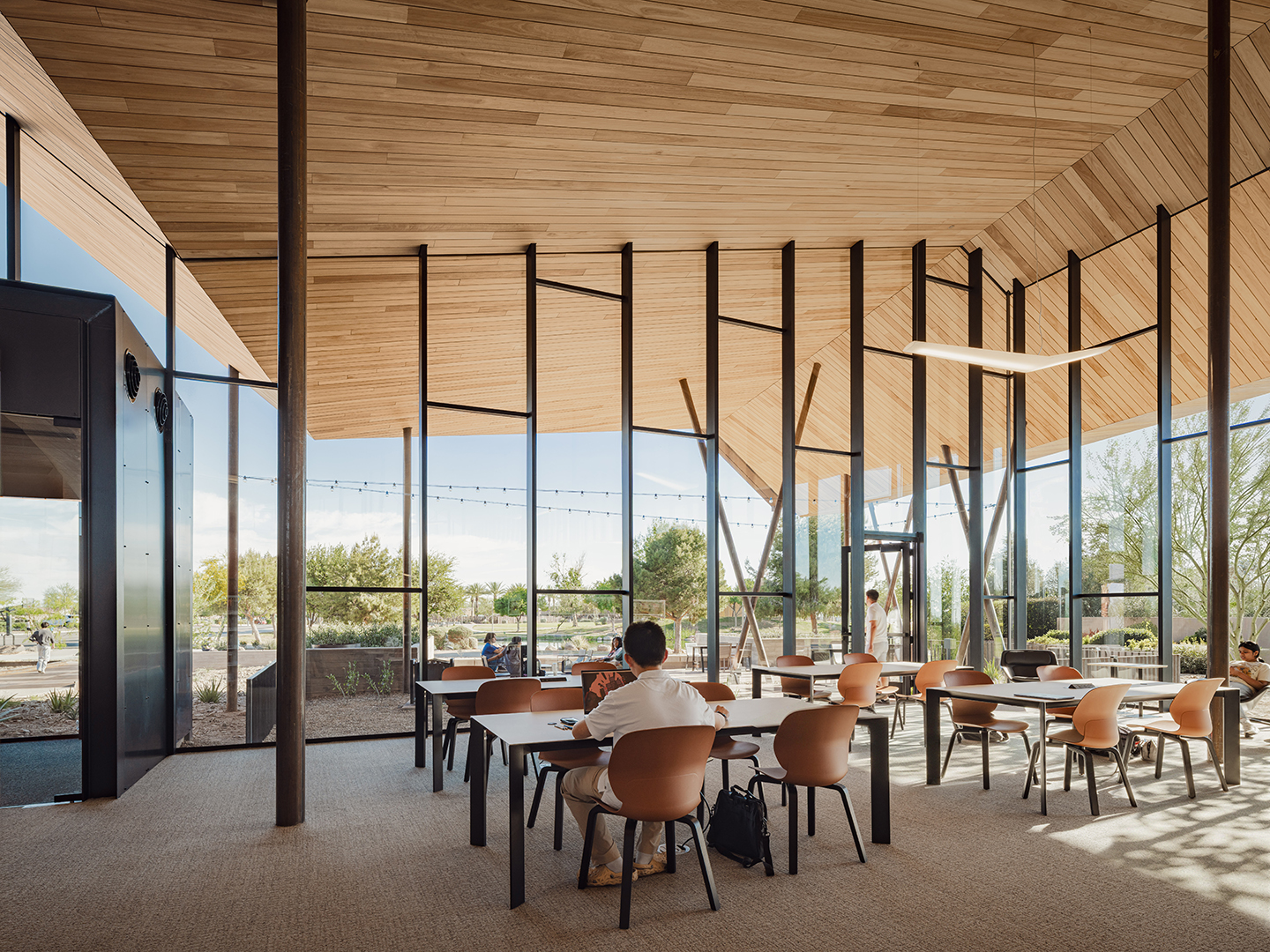

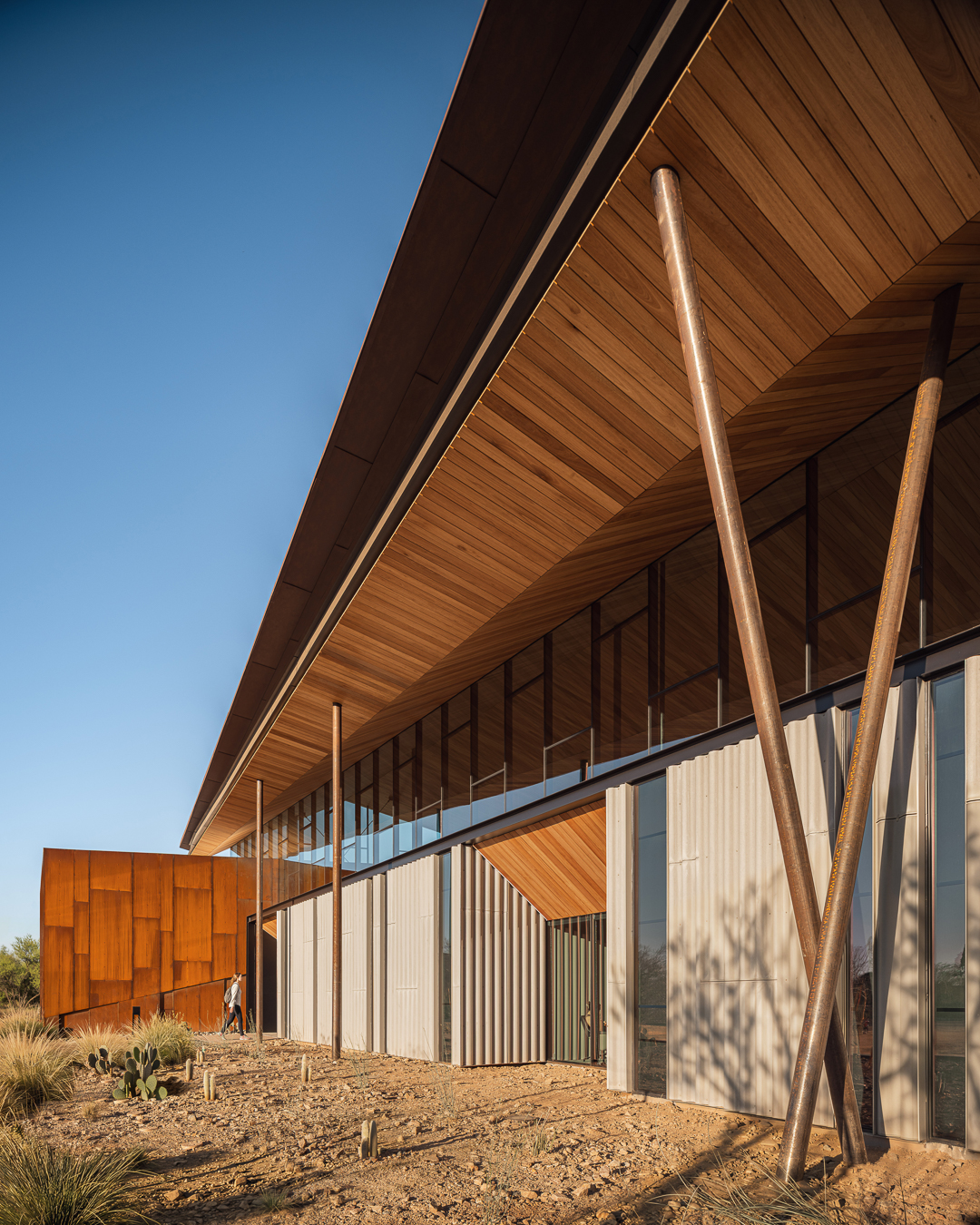

The roof, a folded plane spans the hall, its geometry calibrated to admit diffuse light while limiting direct solar gain. Deep overhangs extend outward, producing a perimeter of shade that mediates between interior and exterior. Within, daylight is evenly distributed, reducing contrast and glare. The effect is less that of an interior illuminated by apertures than of a shaded exterior brought inside.

program axon

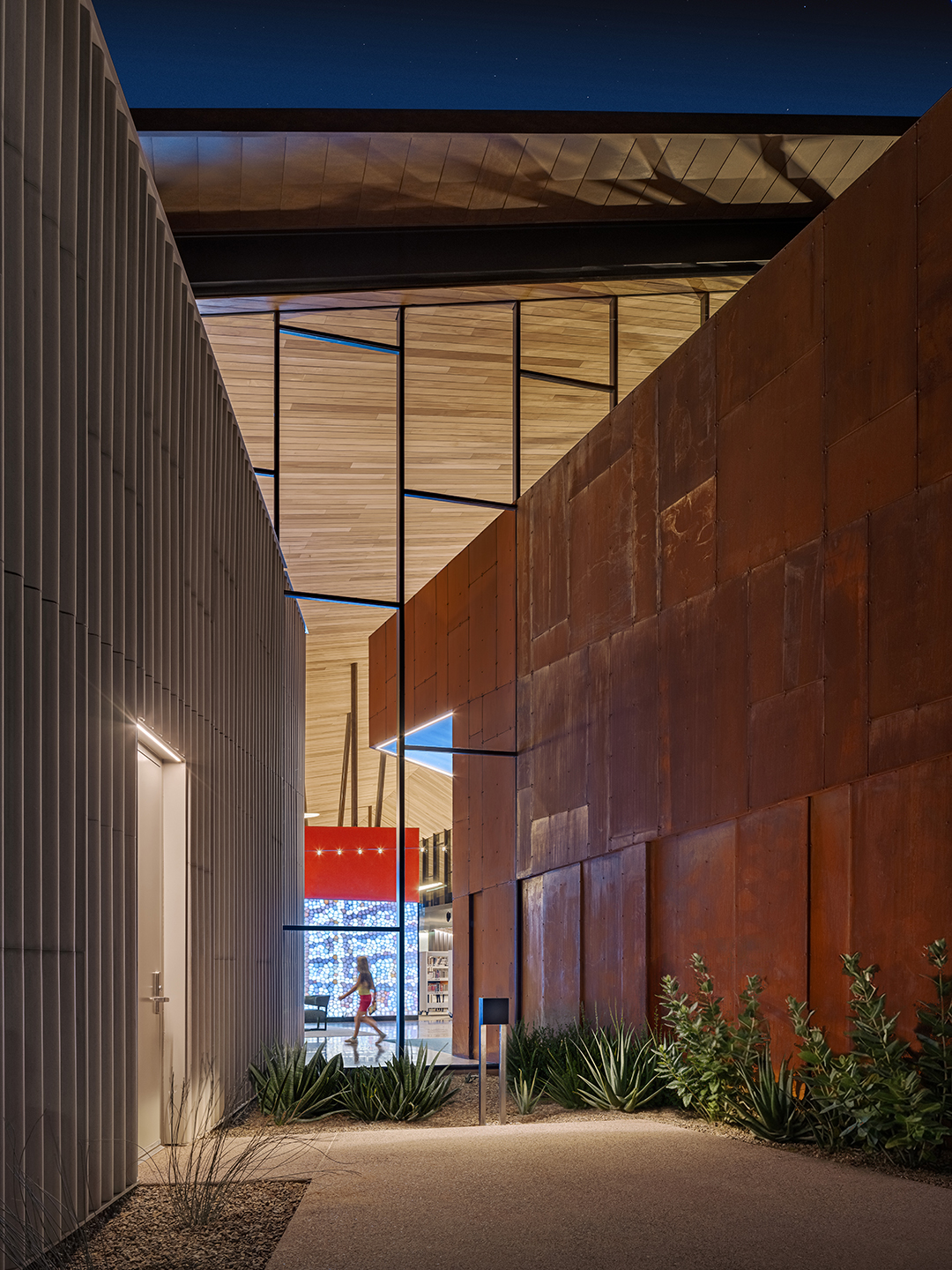

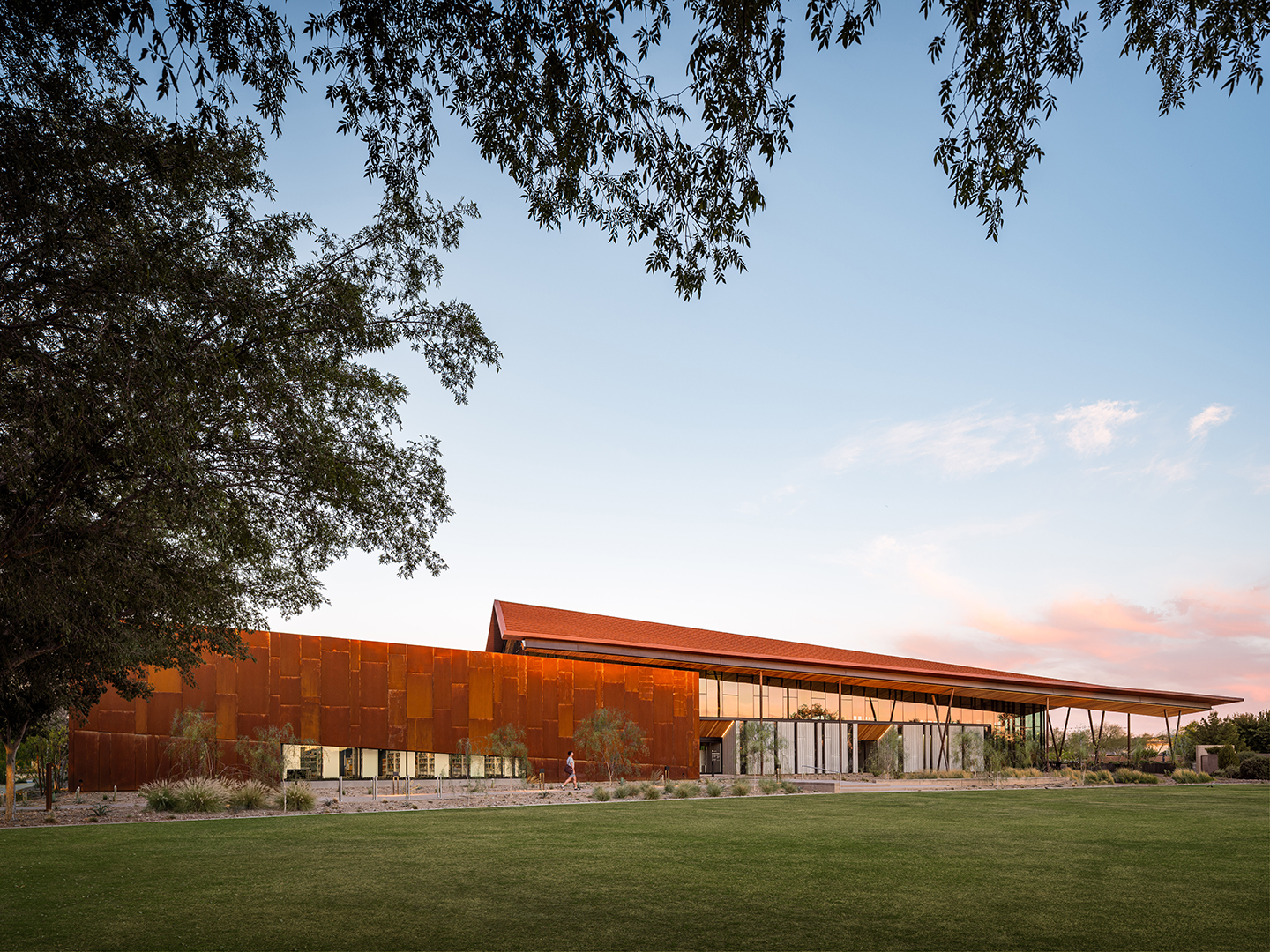

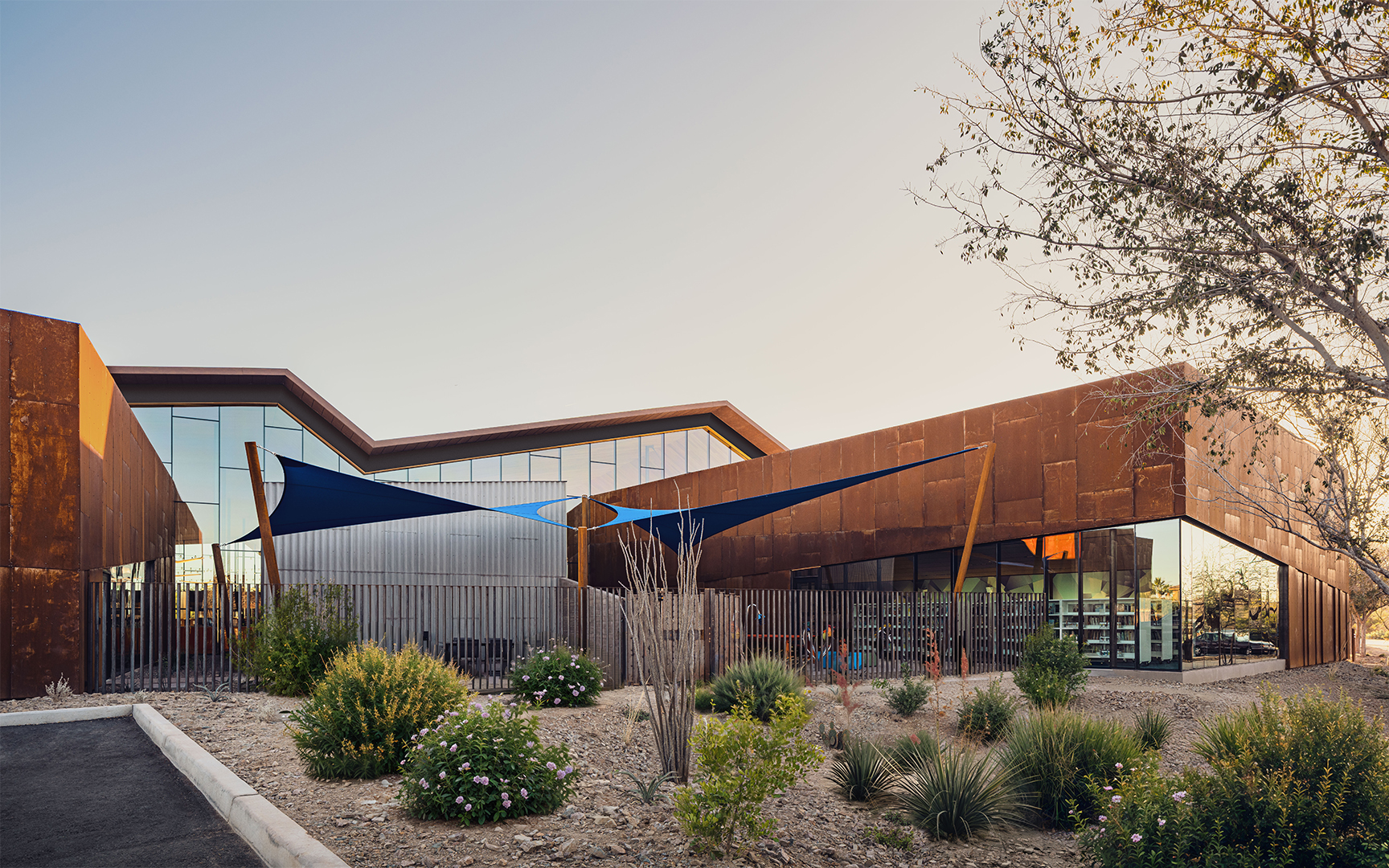

Materially, the project is grounded in a restrained palette of weathering steel, wood, concrete, and glass. These materials are deployed with an emphasis on continuity and durability, extending from exterior surfaces into the interior without significant change. The approach avoids applied finishes in favor of materials that can weather and wear without loss of character, an appropriate response to both climate and use.

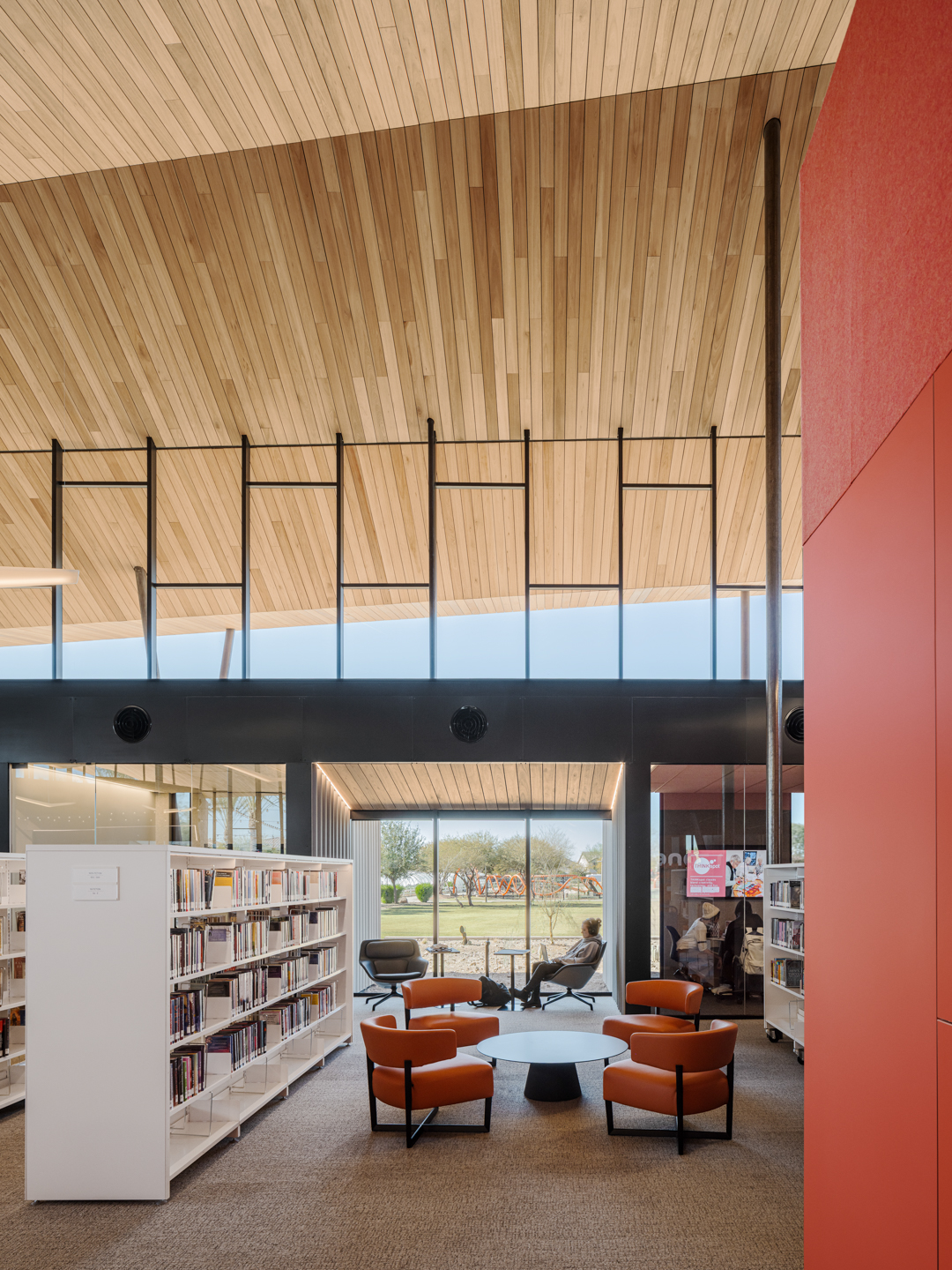

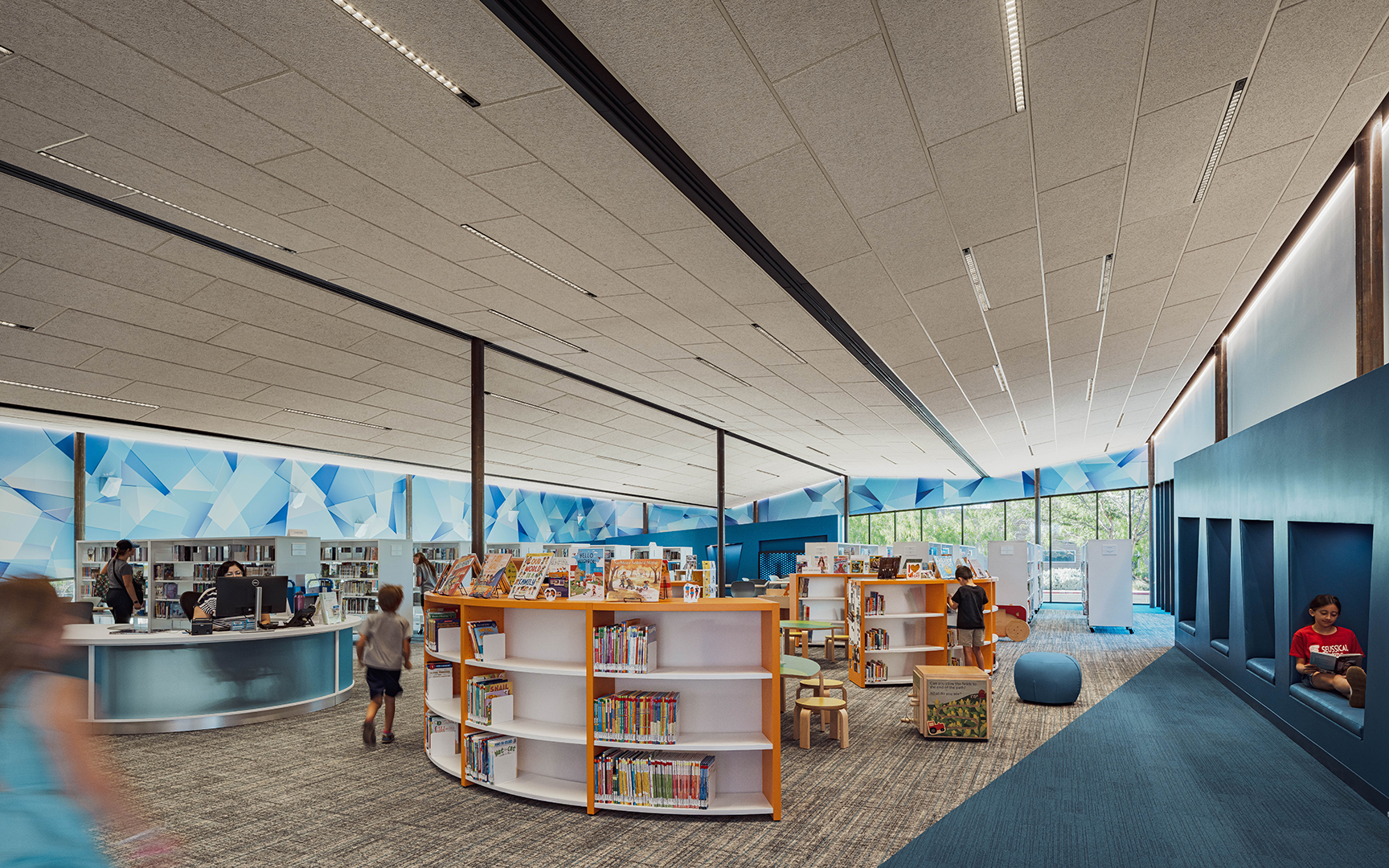

Acoustically, the open volume is moderated through section rather than enclosure. Sloped ceiling planes diffuse sound across the space, while absorptive surfaces are integrated into the ceiling and select vertical elements. This allows active and quiet uses to coexist within a single room without reliance on visual separation.

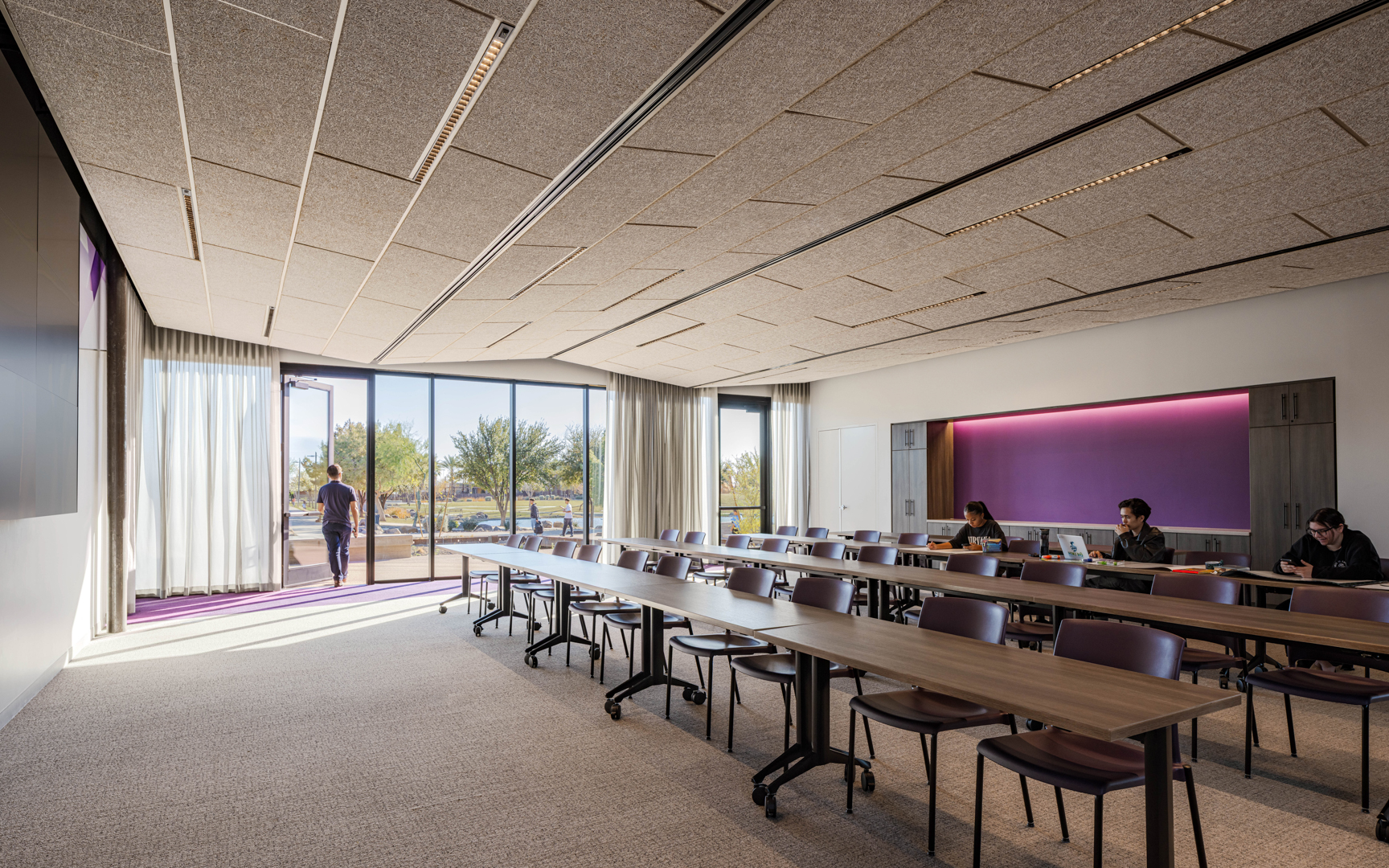

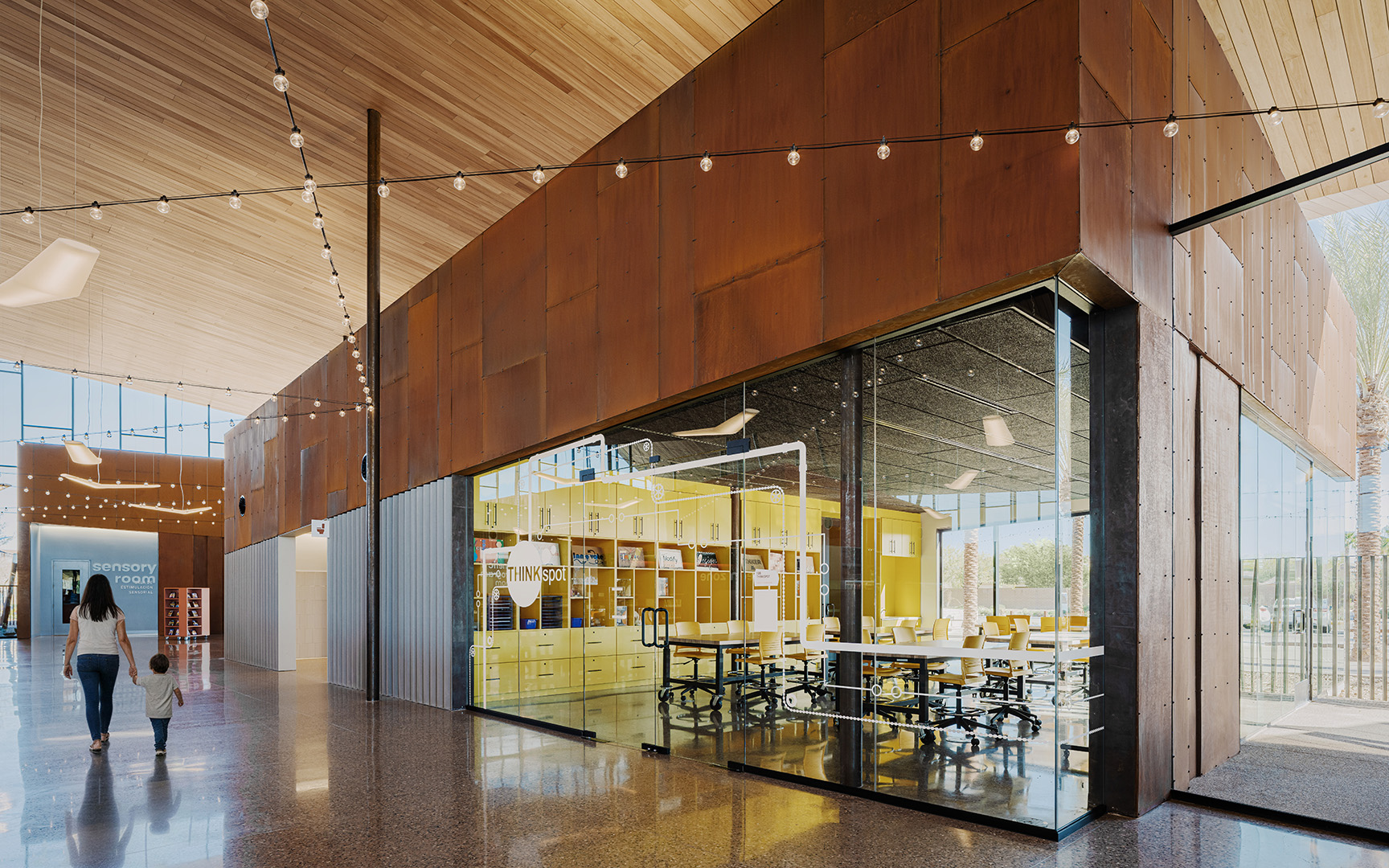

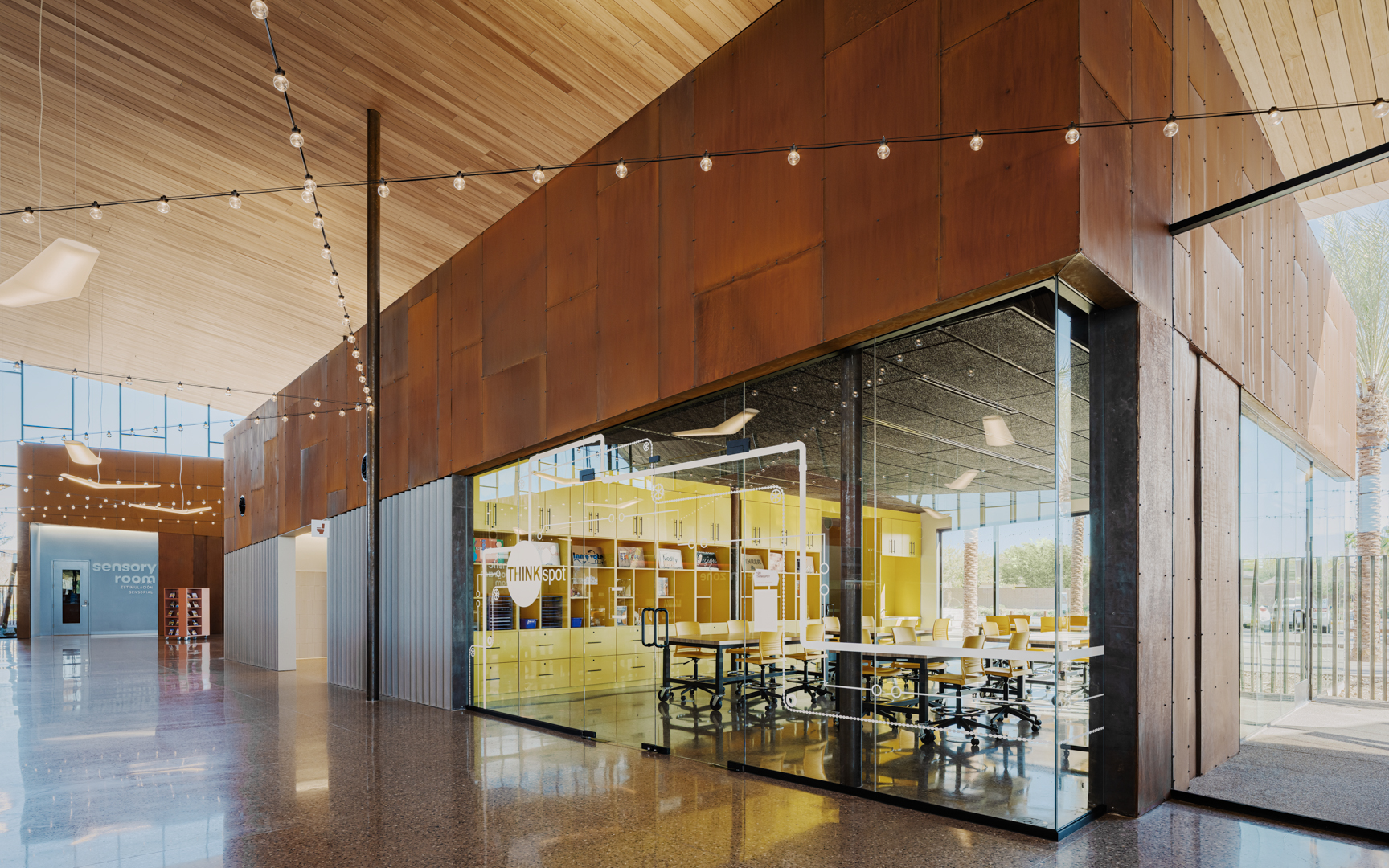

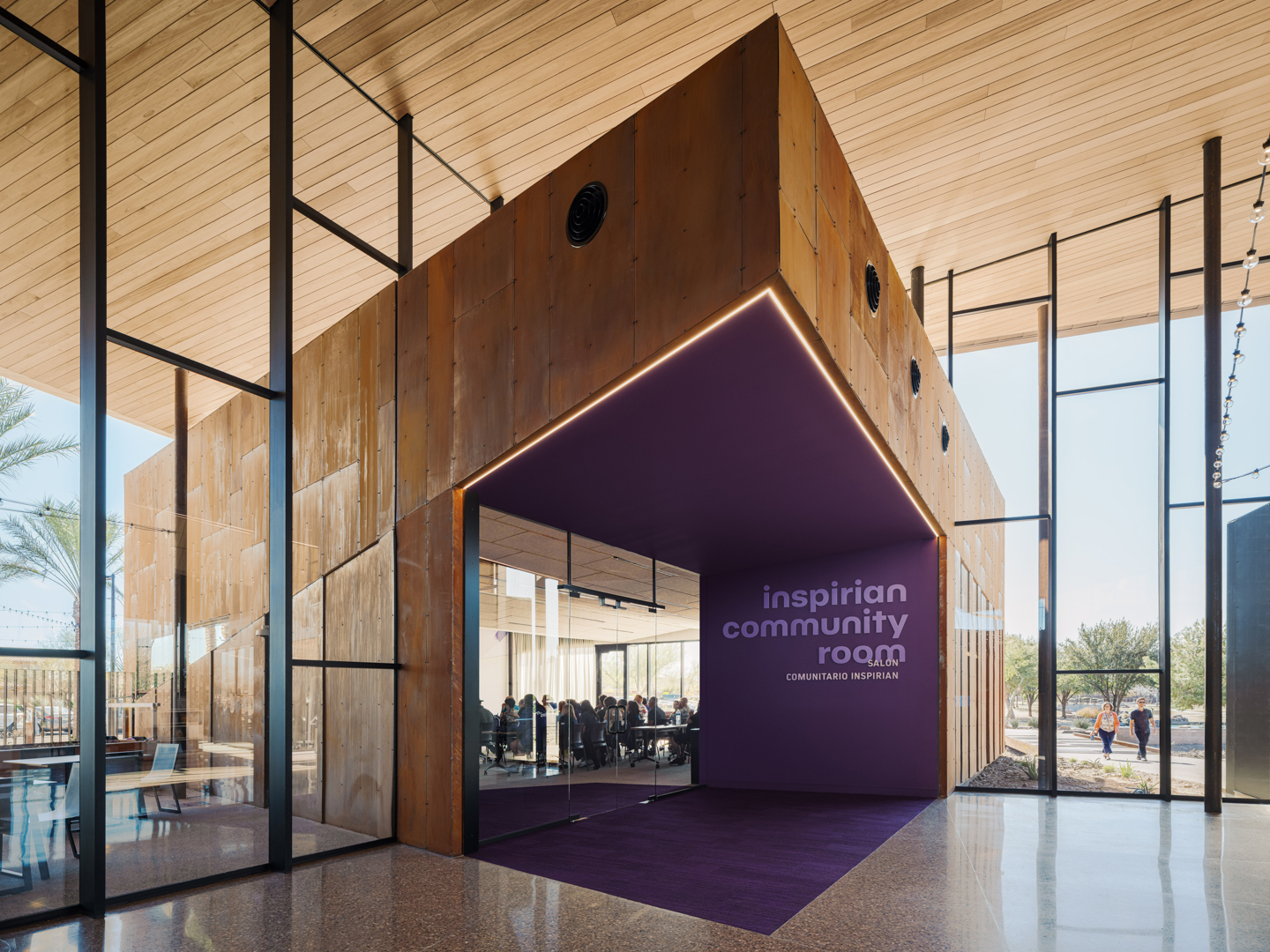

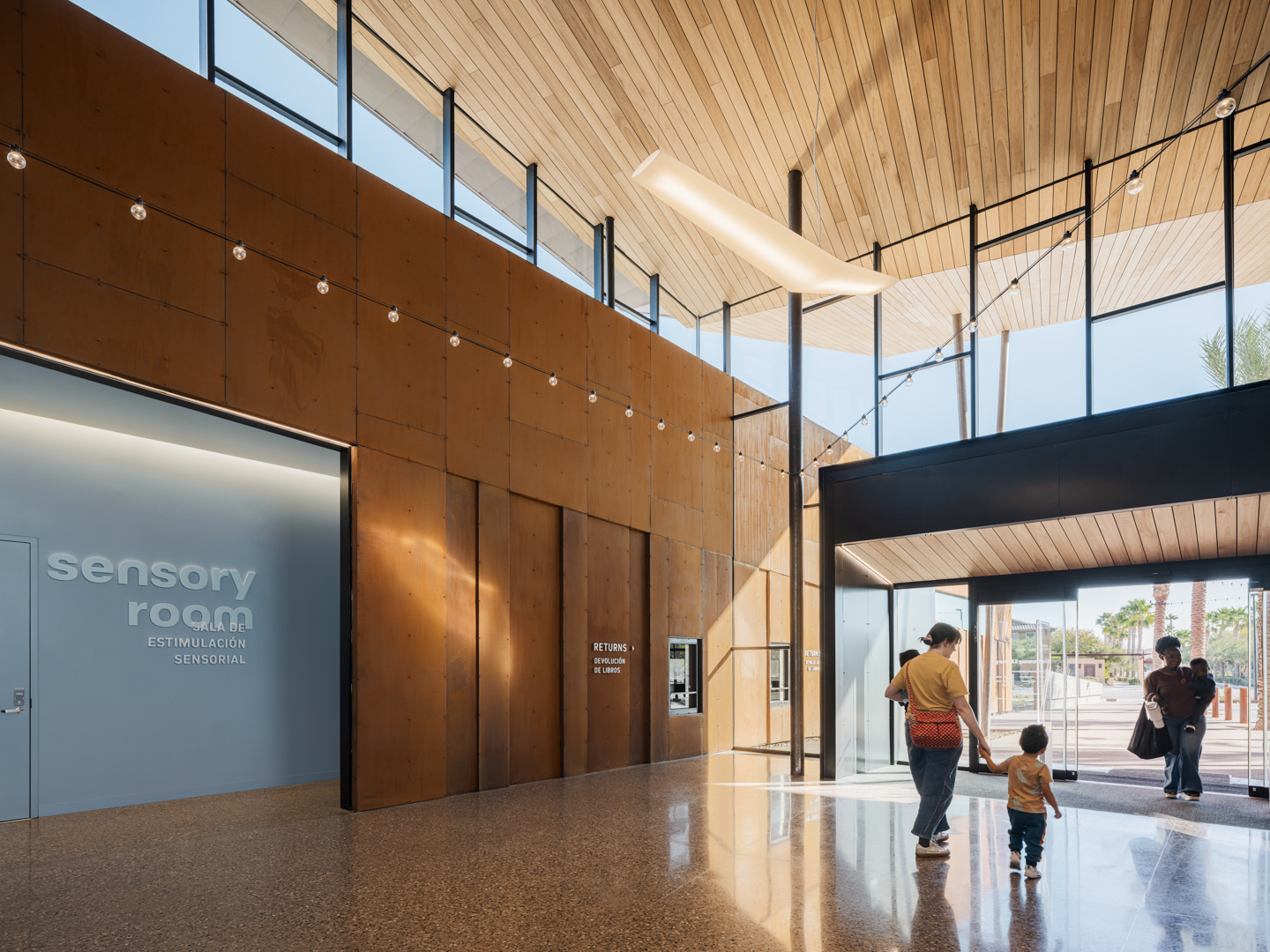

The library’s program extends beyond collection and reading. A maker space, community room, and digital art wall introduce spaces of production and display, while a certified sensory room provides a controlled environment for neurodiverse users. These elements are embedded within the larger composition, reinforcing the library as a shared civic interior.

Gateway Library aligns spatial clarity with social openness. Rather than a sequence of enclosed rooms, it operates as a single, adaptable interior defined by structure, light, and use, capable of supporting the evolving role of the public library.

Project facts

Design Architect:  Richärd Kennedy Architects

Architect of Record: Richärd Kennedy Architects

Client: City of Mesa

Size:  28,272 SF

Project Type:  Civic + Public

Services: Architecture, Master Planning, Programming, Interior Design

Delivery Method: CMAR

General Contractor: Willmeng Construction

Structural Engineer: Kimley-Horn & Associates

MEP Engineer: Energy Systems Design

Landscape Architect: Dig Studio

Civil Engineer: Dibble

Experiential Graphic Design: Knot Sudio

Press & Awards

2024 - ALA/IIDA Library Interior Design Awards: On the Boards

Concept

Referencing the typology of market halls found the world over, Gateway Library evokes the enduring image of a vast, unifying roof—a protective yet inviting architectural gesture. This soaring canopy integrates the library into Eastmark Great Park, framing activity while responding to the desert climate. Drawing from tectonic traditions, its structure balances lightness and permanence, fostering a communal atmosphere where technology, sustainability, and cultural identity converge, creating a civic landmark that transcends utility to embody place.
